    Cut, Strip & Terminate

    Fully automatic wire crimping machines for cutting, stripping, crimping, sealing, twisting, and tinning. Schleuniger's fully automatic crimping machines are the ideal solution for high-speed wire processing. With a full range of processing stations and optional accessories, these machines maximize productivity for a wide range of applications. Schleuniger CoaxCenters are the first fully automatic machines for processing micro-coaxial and coaxial cables as well as single conductor wires with unbeatable precision.
    CrimpCenter
    Processing Stations
    CoaxCenter
    Options

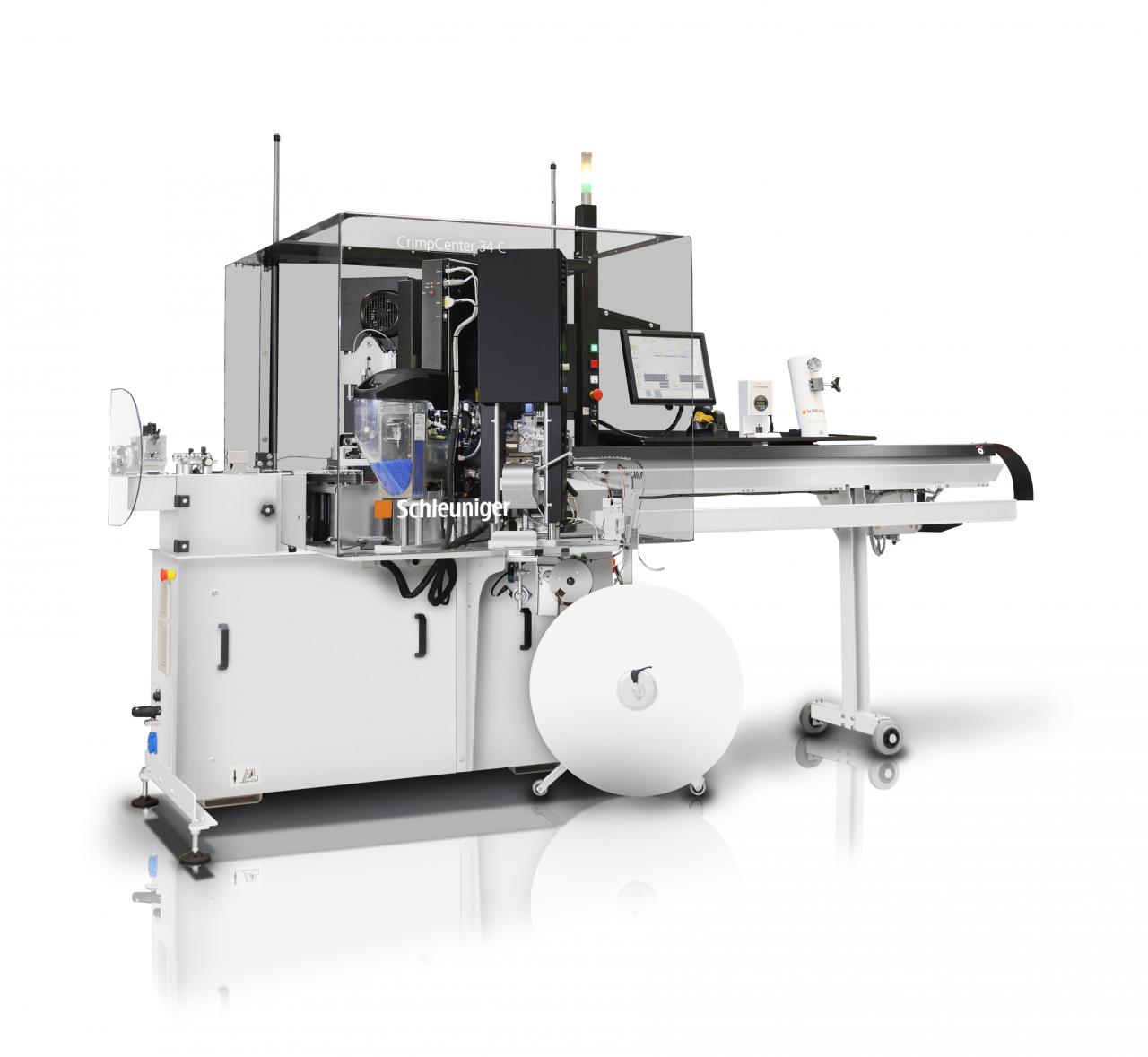

    CrimpCenter

    Fully automatic crimping machine for up to 6 processing stations provides economic flexibility.
    CrimpCenter 36 S
    Fully automatic crimping machine for up to 6 processing stations with increased performance.
    CrimpCenter 36 SP
    Fully automatic crimping machine for up to 4 processing stations for maximum performance.
    CrimpCenter 64
    Fully automatic crimping machine for up to 4 processing stations with increased performance and productivity.
    CrimpCenter 64 SP
    Fully automatic crimping machine for up to 7 processing stations for maximum performance and flexibility.
    CrimpCenter 67
    Fully automatic crimping machine for up to 4 processing stations for large cables up to 16 mm² (6 AWG).
    CrimpCenter 67 HD16
    Processing of long wires with coiling and binding system for CrimpCenters of the 6-series.
    CrimpCenter ACS
    Versatile, fully automatic crimping systems for customer-specific, specialized applications.
    Custom CrimpCenter

    Processing Stations

    Sealing Station for CrimpCenter
    SealLoad 3100
    Space-saving, fully pneumatic double gripper module for horizontal and vertical doubling (1 - 4 mm / 0.039 - 0.157").
    SLD 4100
    Sealing station for CrimpCenter series. Processes a wide range of weather seals. Optional seal-check available.
    SLU 3000
    Tinning station for lead-free tinning with integrated fluxing. Suited for all models of the CrimpCenter series.
    STS 1100
    Twisting Station for twisting conductor strands on CrimpCenter series machines.
    STW 1100
    20 kN crimping station with integrated crimp force monitoring and manual crimp height adjustment.
    UniCrimp 221
    20 kN crimping station with integrated crimp force monitoring and optional automatic crimp height adjustment.
    UniCrimp 222
    Powerful crimping machine for side/rear feed banded terminals. Processes large wire sizes up to 16 mm² (6 AWG).
    UniCrimp 500 A
    Compacting station for stranded wires from 0.5 – 6 mm² (20 – 10 AWG) for fully automatic crimping machines.
    KM-CFK

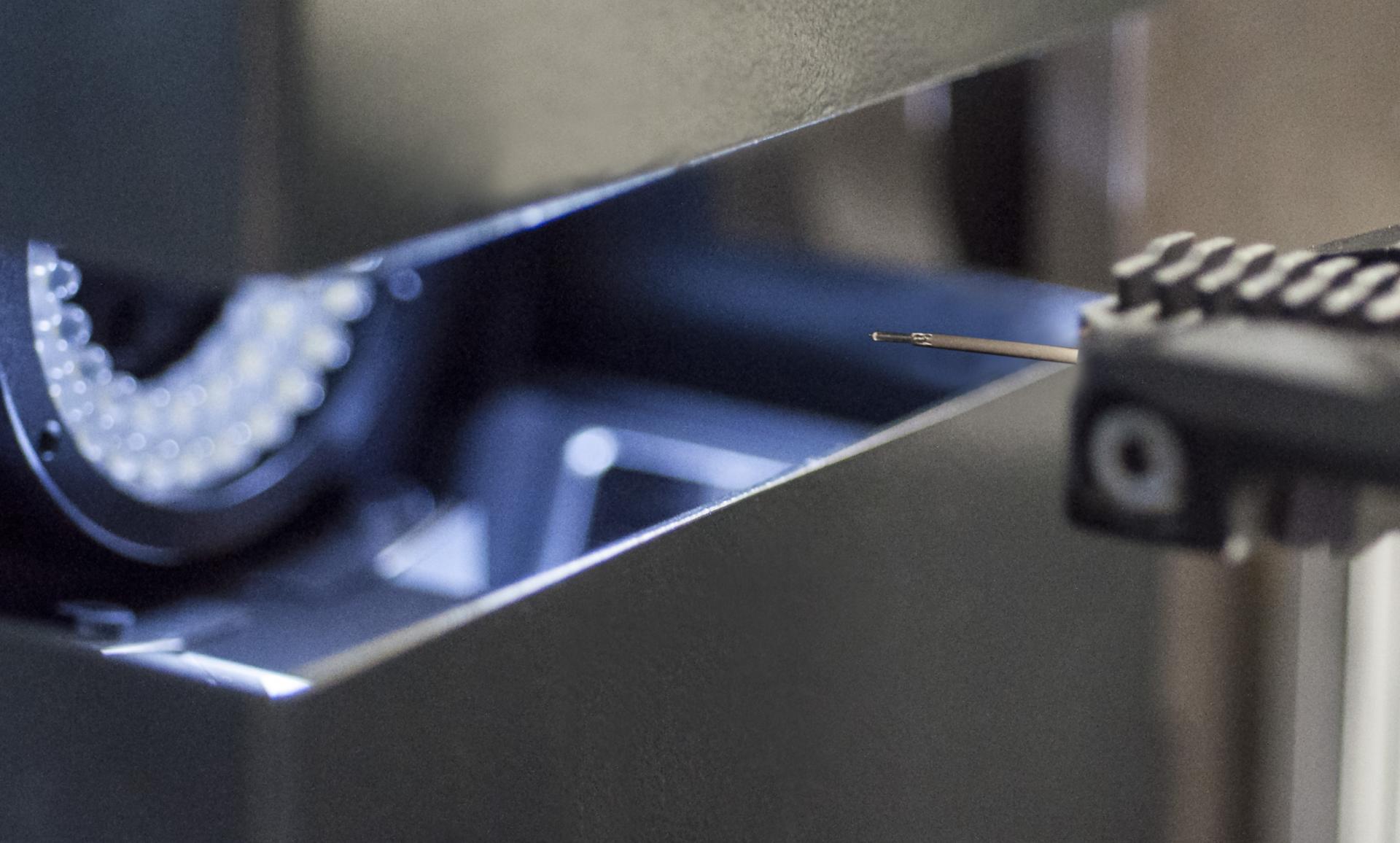

    CoaxCenter

    Our award-winning machine provides unbeatable precision in the processing of micro-coaxial and coaxial cables.
    CoaxCenter 6000

    Options

    External unit for window strip processing with fully automatic crimping machines or cut & strip machines.
    CenterStrip 1000
    Cleaning station for loose-piece weather seals.
    SealCleaner 20
    Change crimp applicator (tooling), terminal reel and paper winder in less than 60 seconds with Plug & Crimp™.
    ToolingShuttle 30
    Change crimp applicator (tooling), terminal reel and paper winder in less than 30 seconds with Plug & Crimp™.
    ToolingShuttle 61
