TM 66

Tying Machine

Overview

Overview

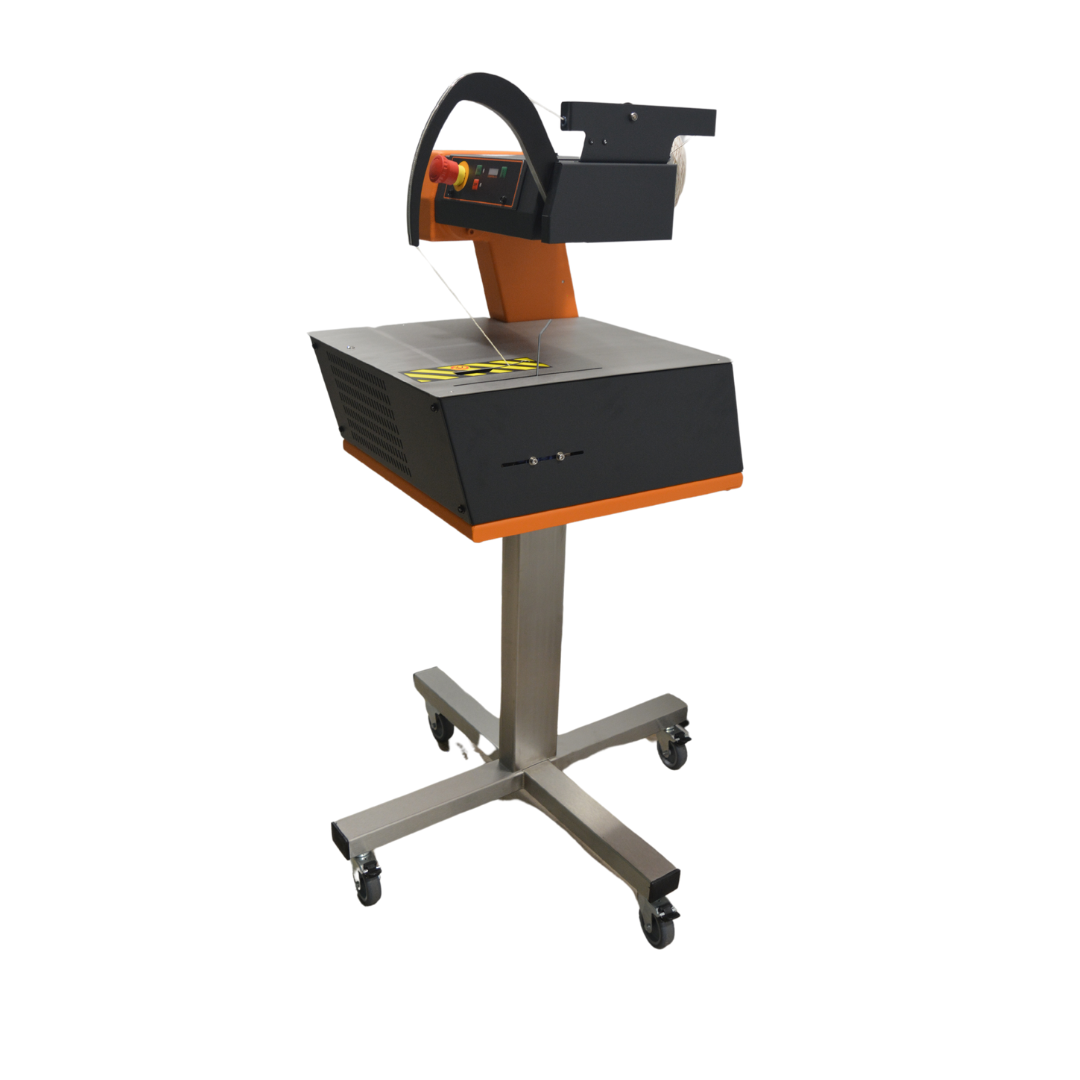

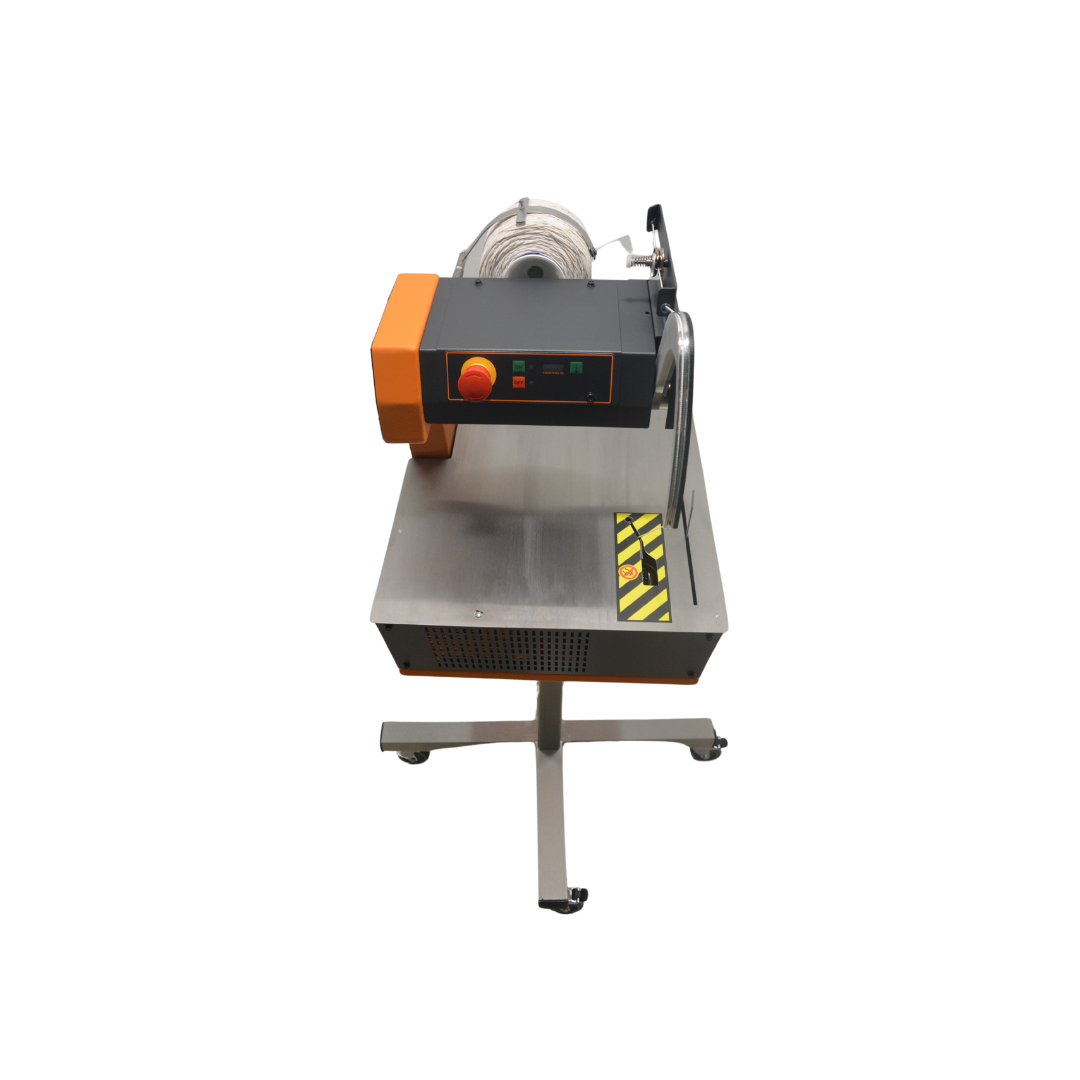

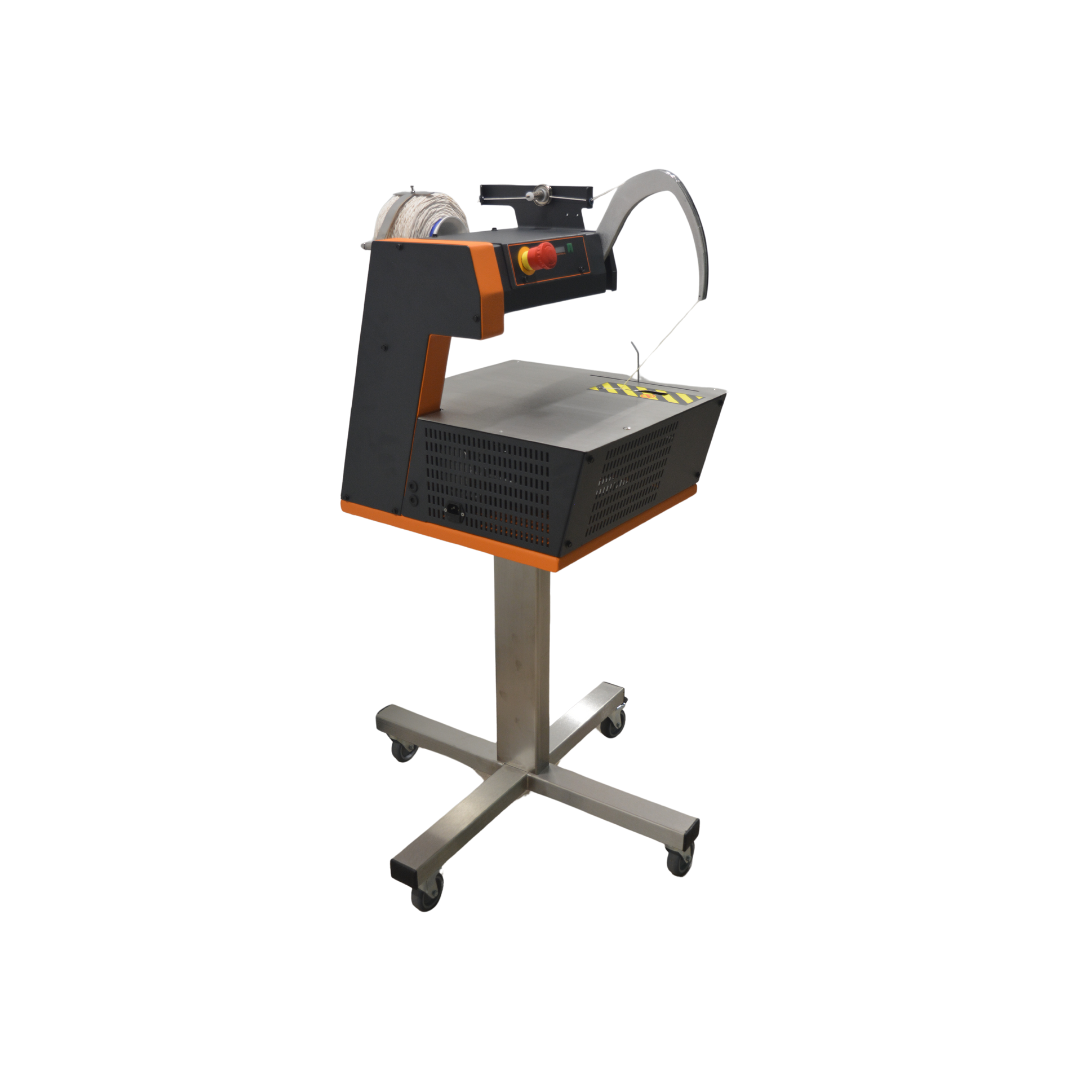

The TM 66 Tying Machine is a semi automatic universal tying machine that is used to tie coils, hanks or bundles of wire, cable and tubing, etc. Diameters from 5 to 150 mm (0.2 "- 5.9") can be processed.

  • No adjustments required for different bundle diameters
  • Adjustable tying tension
  • Automatic cord loading
  • Short cycle time
  • Electronic safety eye

Application Range

Application Range

The Schleuniger Model TM 66 is a semi-automatic universal tying machine that is used to tie coils, hanks or bundles of wire, cable and tubing, etc. The TM 66 uses an ingenious concept to automatically wrap tensioned elastic cord around the material to be bound, ties a knot in the cord and then cuts the ends. It is a perfect companion to all Schleuniger cutting, cutting/stripping, coiling and stacking systems.

The TM 66 Schleuniger Tying Machine is very easy to use.

Operators can be trained in minutes. The machine functions as follows:

  1. Position the material to be tied on the machine table surface.
  2. Depress the footpedal to begin the cycle.
  3. Remove the tied bundle from the table top.

Technical Data

Tying Dimensions

Tying diameter min.: 5 mm (0.2”)
Tying diameter max.: 150 mm (6”)
Coil inside diameter min.: 150 mm (6”)
Coil outside diameter max.: Unlimited

Elastic CordType: 1.0 mm (0.039”) diameter triple elastic core with woven Lycra jacket
Tying TensionAdjustable range: 2-7 N (0.50 to 1.50 lbs)
Cycle TimeSeconds: 0.6 seconds
Dimensions (L x W x H)480 x 450 x 1230 mm (18.9” x 17.7” x 48.4”)
Weight75 kg (165 lbs)
Power Supply115 VAC, 60 Hz / max. 180 VA
CE-ConformityThe TM 66 complies fully with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
Important NoteSchleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
